Product Description
This special assembly table configuration is IN STOCK and available for IMMEDIATE shipping from our Ohio warehouse. It is a configuration of our AMTE-400 assembly table with our most popular accessories. Configuration includes the following:
- AMTE-400 assembly table
- Battery Pack to allow for portability

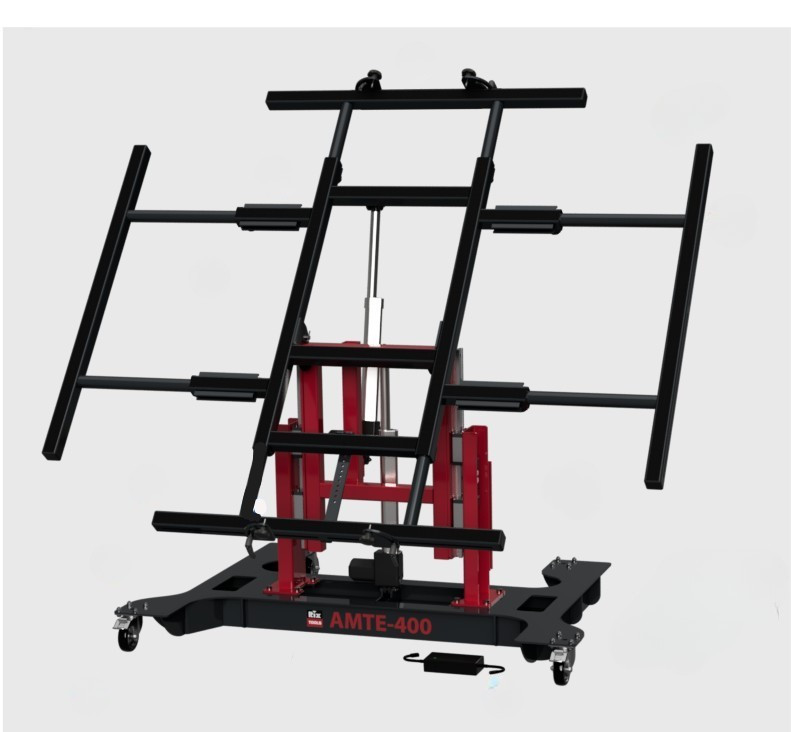

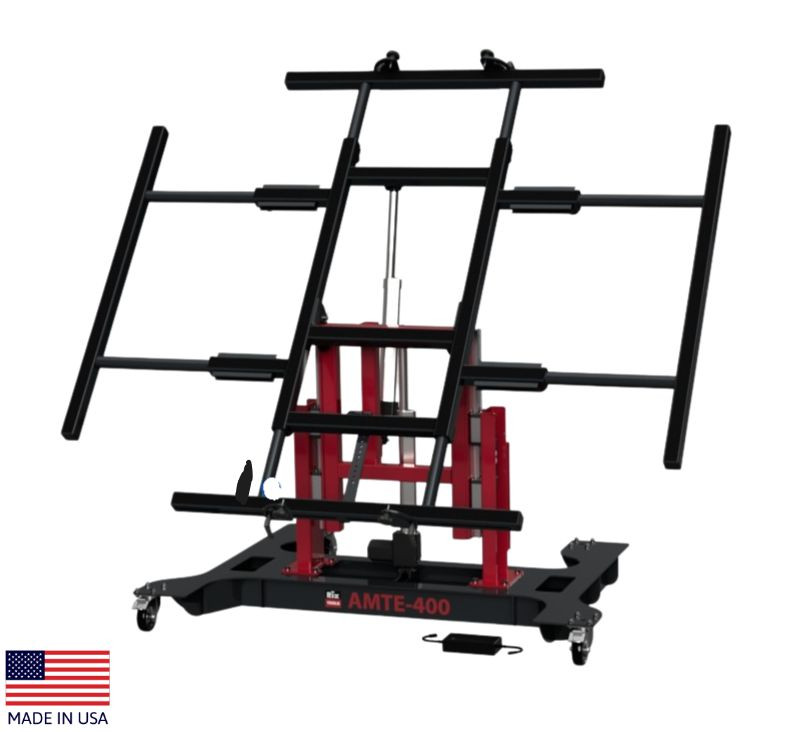

- 1 Pair of Side Extensions allowing for a larger maximum surface area of 74.5" W x 78" H.

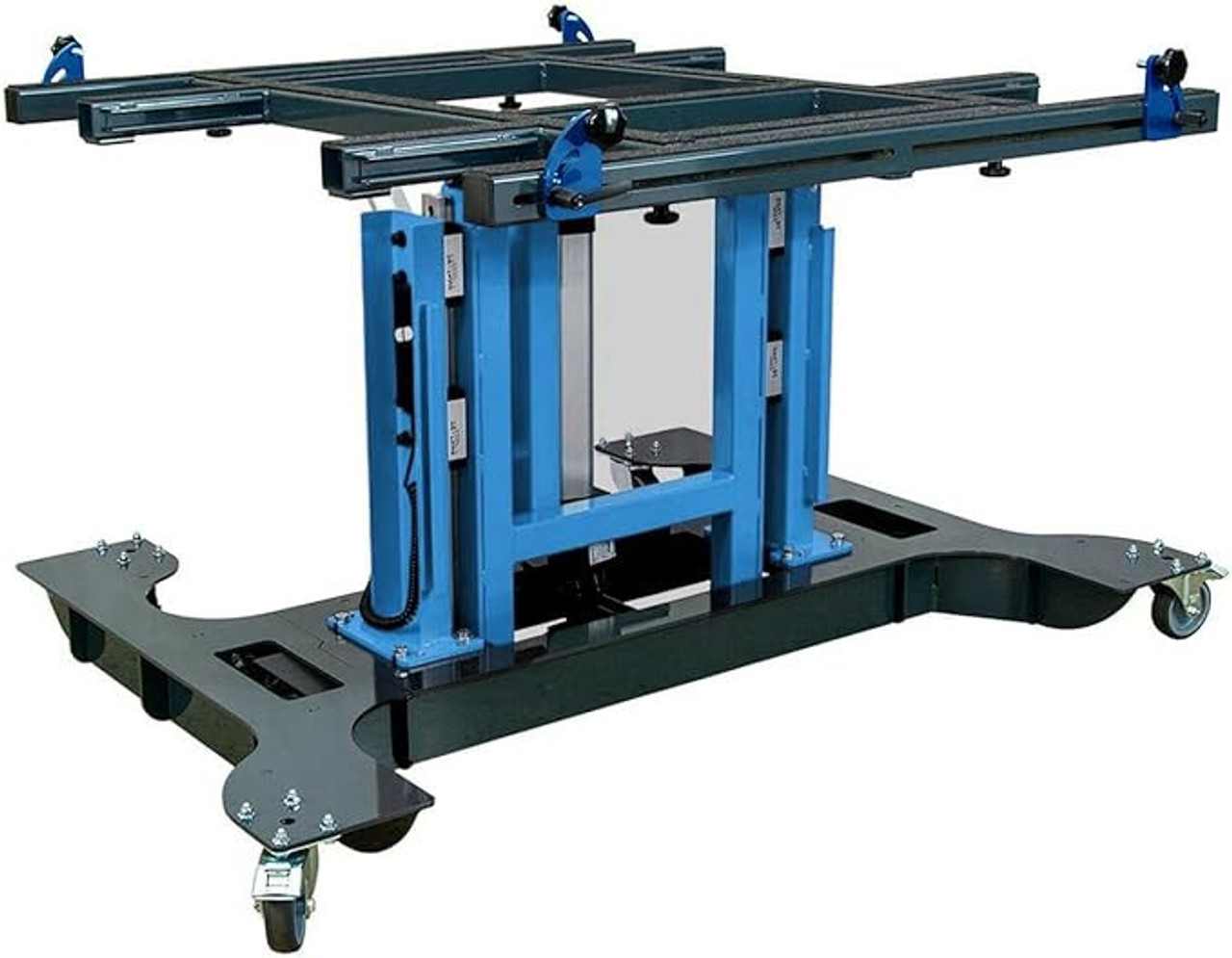

The AMTE-400 Dual Axis Assembly Table is an innovative and ergonomically engineered solution designed for the precision demands of electric panel assembly. Powered by 120/230V 50/60Hz AC, it also features an upgradeable rechargeable battery system, offering enhanced mobility and flexibility across various work environments. This makes the table highly adaptable for both stationary and mobile applications, ensuring seamless operation in diverse manufacturing settings.

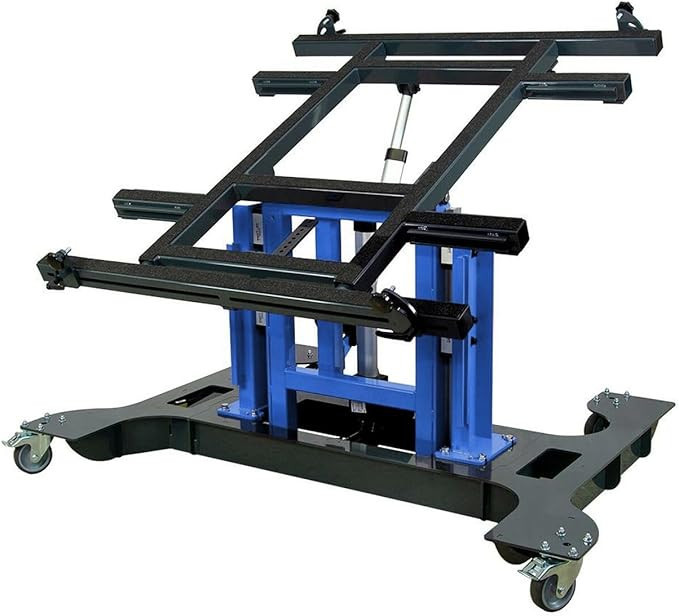

One of the key advantages of the AMTE-400 is its dual-axis configuration, which facilitates natural, fluid movements for operators. It is equipped with two electronically controlled linear actuators for height and tilt angle adjustments of the table work surface. The 4-button key pad allows for precise continuous adjustment from vertical to horizontal positions as well as variable height adjustment up to 43”. This design not only minimizes physical strain but also significantly boosts productivity and precision, allowing for longer work periods without compromising accuracy or efficiency. The table's layout has been carefully crafted to reduce operator fatigue, making it an essential tool for environments that demand high output and precision.
The AMTE-400 streamlines the entire assembly and wiring process, leading to faster turnaround times and improved workflow. This table is not just a piece of equipment but a comprehensive solution that addresses the key challenges in modern manufacturing. By integrating advanced technology with operator-centered design, the AMTE-400 Dual Axis Assembly Table stands as a critical asset for manufacturers aiming to maintain high-quality output while optimizing labor efficiency.
Features At A Glance:
- Equipped with two electronically controlled linear actuators for height and tilt angle adjustment
- Powered by 120/230V 50/60Hz with optional upgradeable rechargeable battery system available for mobile use
- Powder coat paint - available in both red and blue
- Includes four casters (two locking, two standard) for increased mobility and safe positioning
- Can hold panels with dimensions up to 44” in width and 78” in height; 74.5"x 78" with optional side extensions
- Maximum load capacity is 900lbs or 408 kg with a 1.25x safety rating
- Floor space requirement approximately 63 x 45"
- Proudly Made in the USA
Technical Data:
*Table surface area dimensions are not indicative of maximum supported panel size, table can allow overhang as long as load is entirely secured.
Have additional questions? Submit a contact form or call us at 419-763-1400.
