Product Description

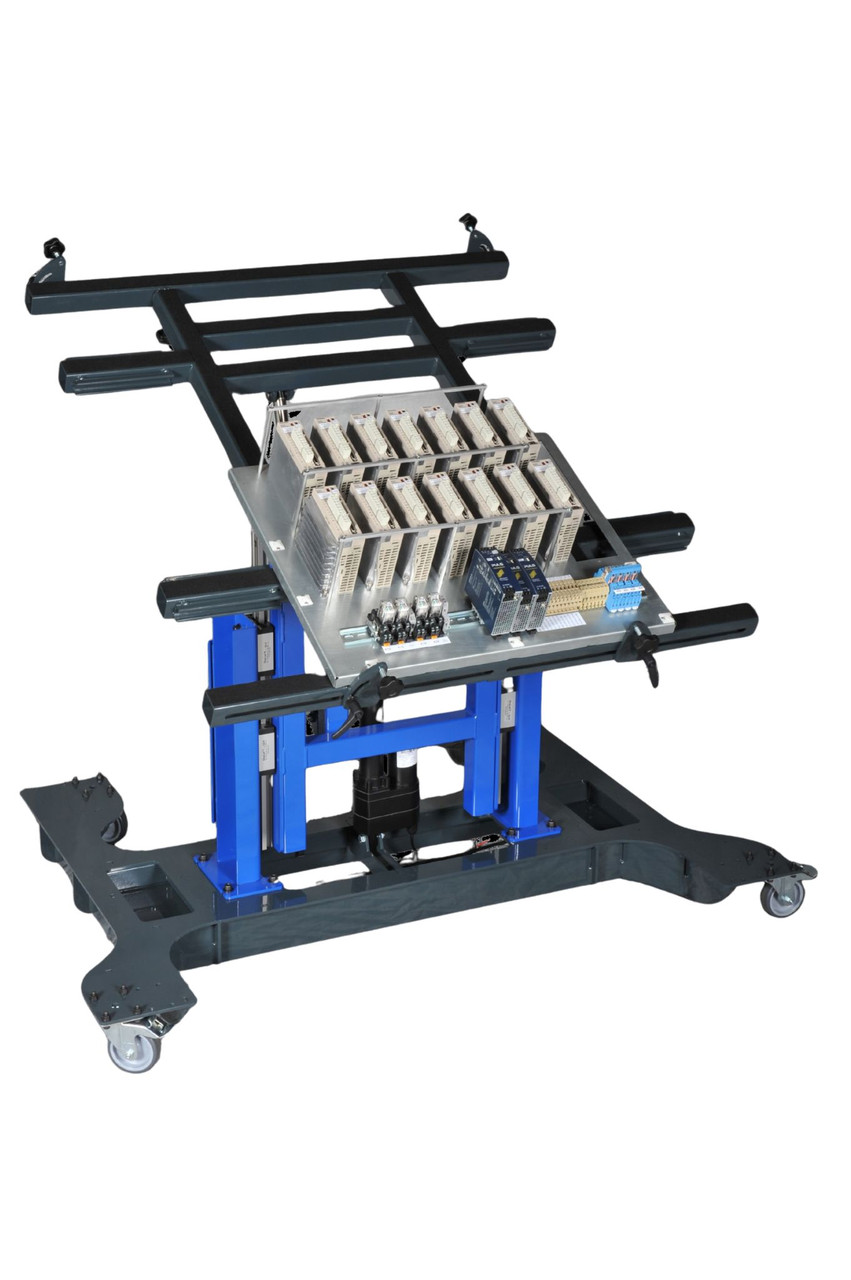

The AMTE-500 Increased Load Capacity Dual Axis Assembly Table is an innovative and ergonomically engineered solution designed for the precision demands of electric panel assembly. Powered by 120/230V 50/60Hz AC, it also features an upgradeable rechargeable battery system, offering enhanced mobility and flexibility across various work environments. This makes the table highly adaptable for both stationary and mobile applications, ensuring seamless operation in diverse manufacturing settings.
Similar to the AMTE-400, the AMTE-500 is designed with dual-axis configuration, which facilitates natural, fluid movements for operators. It is equipped with two heavy duty electronically controlled linear actuators for height and tilt angle adjustments of the table work surface. The 4-button key pad allows for precise continuous adjustment from vertical to horizontal positions as well as variable height adjustment up to 43”. This design not only minimizes physical strain but also significantly boosts productivity and precision, allowing for longer work periods without compromising accuracy or efficiency. The table's layout has been carefully crafted to reduce operator fatigue, making it an essential tool for environments that demand high output and precision.
The key difference in the AMTE-500 model is its increased load capacity. This model has a maximum load capacity of 1,500 lbs.
Features At A Glance:
- Equipped with two heavy duty electronically controlled linear actuators for height and tilt angle adjustment
- Powered by 120/230V 50/60Hz with optional upgradeable rechargeable battery system available for mobile use

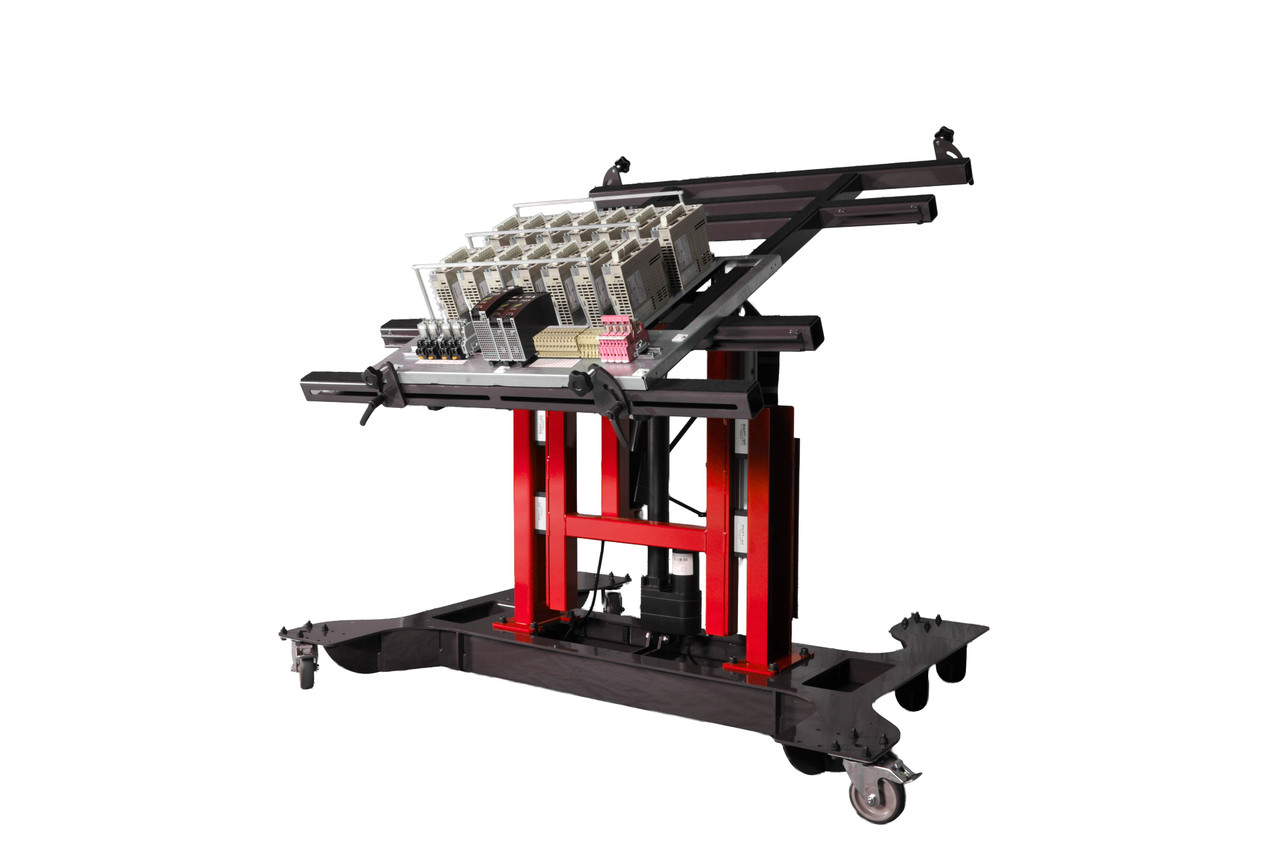

- Powder coat paint - available in both red and blue
- Includes four casters (two locking, two standard) for increased mobility and safe positioning
- Can hold panels with dimensions up to 44” in width and 78” in height; 74.5"x 78" with optional side extensions
- Maximum load capacity is 1,500 lbs.
- Floor space requirement approximately 63" x 45"
- Proudly Made in the USA

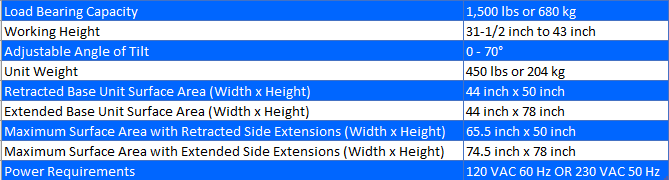

Technical Data
*Table surface area dimensions are not indicative of maximum supported panel size, table can allow overhang as long as load is entirely secured.
Have additional questions? Submit a contact form or call us at 419-763-1400.
