Product Description

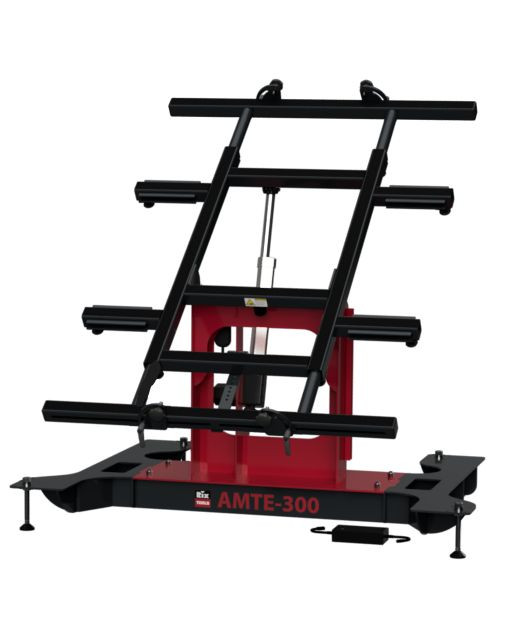

The AMTE-300 Adjustable Tilt Electric Control Panel Mounting & Assembly Table is a versatile assembly table intended for ergonomic, effective and time-saving assembly and wiring of electric panels and other repetitive motion assembly work. Powered by 120/230V 50/60Hz AC, it also features an upgradeable rechargeable battery system, offering enhanced mobility and flexibility across various work environments. This makes the table highly adaptable for both stationary and mobile applications, ensuring seamless operation in diverse manufacturing settings.
The AMTE-300 is equipped with an electronically controlled linear actuator for tilt angle adjustment of the table work surface. The 4-button key pad allows for precise continuous adjustment from vertical to horizontal positions, from 0 to 70°. The assembly table is designed as a tool to assist in increasing productivity, reducing stress on the operator and reducing assembly time during the manufacturing process. It assists in reducing repetitive motion strain, reducing the threat of general injury, workman's compensations claims, disability claims, etc.
Features At A Glance:
- Equipped with an electronically controlled linear actuator for full range (0-70°) of title angle positions
- Fixed working horizontal height is 31⅞"
- Powered by 120/230V 50/60Hz AC with optional upgradeable rechargeable battery system available for mobile use
- Powder coat paint - available in both red and blue
- Includes four casters (two locking, two standard) for increased mobility and safe positioning
- Maximum surface area is 44" in width and 78" in height; 74.5" x 78" with optional side extensions. Table surface area dimensions are not indicative of maximum supported panel size, table can allow overhang as long as load is entirely secured.
- Maximum load capacity is 900 lbs. or 408 kg with a 1.25x safety rating
- Floor space requirement approximately 63" x 45"
- Proudly Made in the USA
Typical delivery time on this item is 1-2 weeks or less.
Have additional questions? Submit a contact form or call us at 419-763-1400.
Product Videos
Custom Field
Product Reviews
2 Reviews Hide Reviews Show Reviews
-
Time and back saver!
very easy to use and fast assembly Machine Pro has been great to work with
-
Works well, worth the investment
great back saver and will speed up production. only complaint is no assembly instructions, easy enough by looking at the pictures.
